Mitsubishi line set sizes
Short answer: Most Mitsubishi M-Series wall-mounts use a 1/4" liquid line with a 3/8" gas line at 9,000–12,000 BTU, stepping the gas line up to 1/2" at 15,000–18,000 BTU; a 24,000 BTU unit such as the MSZ-GL24NA steps up to 3/8" × 5/8". The exact pair depends on your indoor model — MSZ-FS, GL, GS, EF, or the newer R-454B GX — so confirm it in your manual.
The right line set diameter for your Mitsubishi mini-split by capacity, across the M-Series and P-Series — plus how Mitsubishi's pre-charge, flaring, and the move to R-454B affect your install. Prefer to size by run length too? Use the size calculator.
Mitsubishi line set size by capacity
Line set diameter is set by your system's capacity and indoor unit. Match your Mitsubishi unit's BTU rating to the typical liquid-and-suction pair below — these reflect the common M-Series wall-mount sizes.
| Mitsubishi system size | Typical line set (liquid × suction) |
|---|---|
| 6,000 BTU | 1/4" × 3/8" |
| 9,000 BTU | 1/4" × 3/8" |
| 12,000 BTU | 1/4" × 3/8" |
| 15,000 BTU | 1/4" × 1/2" |
| 18,000 BTU | 1/4" × 1/2" |
| 24,000 BTU | 3/8" × 5/8" |
| 36,000 BTU | 3/8" × 5/8" |
Found your size? Get the matching line set
We stock pre-flared, insulated line sets in the sizes Mitsubishi uses: 1/4" × 3/8" for 6k–12k units, 1/4" × 1/2" for 15k–18k, and 3/8" × 5/8" for 24k–36k. 16 ft and 25 ft, open for preorder.
For example, the M-Series MSZ-FS06/09/12 use a 1/4" liquid and 3/8" gas line, while the FS15/18 step the gas line up to 1/2". P-Series and ducted units at the same capacity can differ, so the exact liquid and suction diameters for your unit are printed in its installation manual. Always confirm there before buying.
Mitsubishi line set size by model
Most Mitsubishi owners know their indoor model number — MSZ-FS12NA, MSZ-GL18NA, and so on. Find your series below; the line set follows the capacity the same way across the M-Series wall-mounts, with the gas line stepping up at 15,000 BTU.
| Series (example models) | 9k–12k | 15k–18k | 24k | Refrigerant |
|---|---|---|---|---|
| MSZ-FS — Deluxe (FS09/12/15/18NA) | 1/4" × 3/8" | 1/4" × 1/2" | — | R-410A |
| MSZ-GL / GS (GL09–24NA) | 1/4" × 3/8" | 1/4" × 1/2" | 3/8" × 5/8" | R-410A |
| MSZ-EF — Design (EF09/12/15/18NA) | 1/4" × 3/8" | 1/4" × 1/2" | — | R-410A |
| MSZ-GX — newest (GX09/12/15NA) | 1/4" × 3/8" | 1/4" × 1/2" | — | R-454B |
Two things to watch. The gas line steps from 3/8" to 1/2" at 15,000 BTU on every series, so a 12k unit takes a 3/8" suction line while a 15k takes 1/2". And the MSZ-GL24NA breaks the pattern — its liquid line steps up to 3/8" and the gas to 5/8". The newer MSZ-GX is Mitsubishi's first R-454B wall-mount; its pipe diameters match the R-410A models, but it needs A2L-rated handling. On a multi-zone MXZ system, each indoor head gets its own line set sized to that head's capacity, running back to a branch box — not one shared line.
Pre-charged for 25 ft — but still a flared install

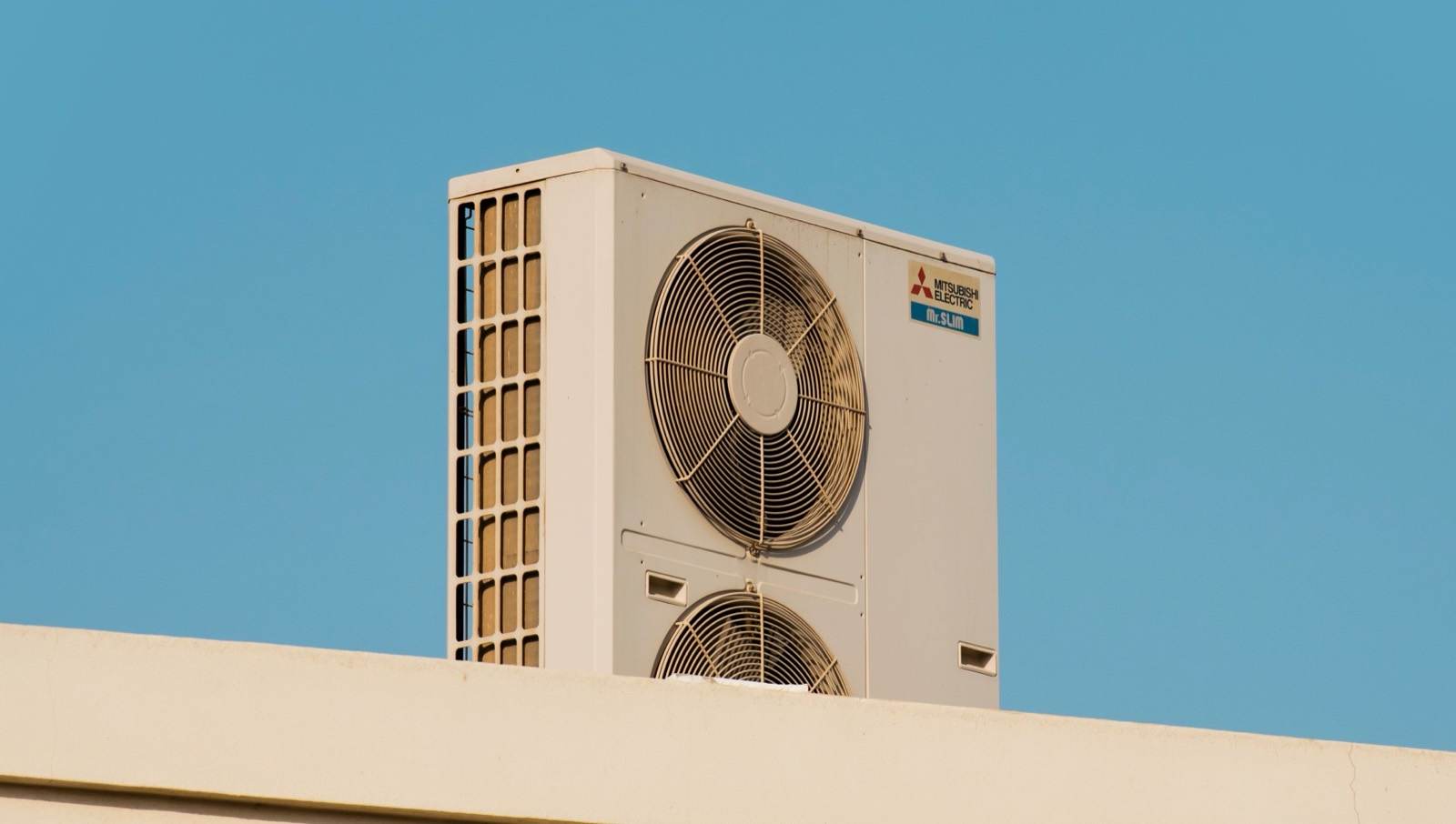

Mitsubishi outdoor units ship with a factory charge good for up to about 25 ft of line set; runs longer than that need a calculated additional charge. That pre-charge does not make it a plug-and-play system — Mitsubishi uses standard field-flared line sets, so you still flare the copper ends and pull a vacuum before opening the service valves. Plan on a vacuum pump and EPA 608 certification, unlike a pre-charged DIY brand such as MRCOOL.
M-Series vs P-Series
Mitsubishi splits its lineup into the M-Series (residential wall-mounts, floor units, and compact ducted) and the P-Series (larger ceiling cassettes and ducted air handlers for bigger or light-commercial loads). The sizing table above covers common M-Series wall-mounts; P-Series and larger ducted units often use the same 3/8" × 5/8" at higher capacity but can step up, so check the specific air handler's manual. On multi-zone systems, each indoor unit gets its own line set sized to that head — a branch box or multi-port condenser splits the runs.
Mitsubishi line set length limits
Diameter is only half the spec. Your Mitsubishi system also limits how long the line set can run and how far the indoor and outdoor units can sit apart in height. Plan your run to the figures below, then confirm the exact limits for your model in its installation manual.
| Minimum line length | Maximum line length | Max vertical separation | Pre-charged for |
|---|---|---|---|
| ~10 ft (no hard spec) | 65–100 ft by capacity | 40–50 ft by capacity | 16–33 ft by series |
Mitsubishi's R-410A M-Series allows about 65 ft of line on 9,000–15,000 BTU units, with up to 40 ft of vertical separation, and about 100 ft on 18,000–24,000 BTU units, with up to 50 ft of lift. The factory charge covers roughly the first 25 ft on smaller units and 33 ft on larger ones; beyond that a calculated additional charge is added (about 0.22 oz per extra foot). Newer R-454B GX-Series units are rated for about 65 ft with a 16 ft pre-charge. Mitsubishi does not publish a hard minimum, but keeping the run to at least about 10 ft helps limit noise and vibration.
Stocked lengths and refrigerant
Because Mitsubishi uses standard line sets, you size to your run rather than to fixed pre-charged lengths — common stocked lengths are 15, 25, 35, and 50 ft.
Match the refrigerant. Legacy Mitsubishi units use R-410A; newer Mitsubishi Electric outdoor units, such as the GX-Series, use R-454B as the industry replaces R-410A, a shift underway since January 1, 2026. The copper line set is the same either way, but your tools, gauges, and any added charge must match your system's refrigerant.
How to find your Mitsubishi model's line set size
- Identify the indoor unit model and series. Note the model number (MSZ-, MSY-, PLA-, etc.) and capacity — line size follows the specific indoor unit, not just the BTU.
- Check the installation manual. It lists the exact liquid and gas diameters, the maximum line length, the pre-charge distance, and the refrigerant for your model — the final word.
Common questions
What size line set does a Mitsubishi 12,000 BTU use?
A Mitsubishi M-Series 12,000 BTU wall-mount unit (such as the MSZ-FS12) uses a 1/4" liquid line with a 3/8" suction line. The 6k and 9k models use the same 1/4" × 3/8" pair. Confirm against your specific model's installation manual.
Do Mitsubishi mini-splits use quick-connect or flared line sets?
Mitsubishi uses standard field-flared line sets, not pre-charged quick-connect. The outdoor unit ships pre-charged for up to about 25 ft of line, but you still flare the copper and pull a vacuum before opening the service valves — so a Mitsubishi install needs a vacuum pump and typically EPA 608 certification.
What refrigerant do Mitsubishi mini-splits use?
Legacy Mitsubishi units use R-410A. New Mitsubishi Electric outdoor units, such as the GX-Series, use R-454B as the industry phases out R-410A under the transition that took effect January 1, 2026. Match your line set, tools, and any added charge to your unit's refrigerant.
What size line set does a Mitsubishi 24,000 BTU use?
A Mitsubishi 24,000 BTU unit typically uses a 3/8" liquid line with a 5/8" suction line, and 30k–36k units generally use the same 3/8" × 5/8" pair. The 15k and 18k M-Series step down to 1/4" × 1/2". Verify against your unit's manual.
What is the minimum line set length for a Mitsubishi mini-split?
Mitsubishi does not publish a hard minimum line set length in its installation manuals. As a rule of thumb, keep the run to at least about 10 feet (3 m) to limit noise and vibration between the units. Always follow the guidance in your model's manual.
What is the maximum line set length for a Mitsubishi mini-split?
It depends on capacity and refrigerant. R-410A M-Series units allow about 65 ft of line on 9,000–15,000 BTU models and up to about 100 ft on 18,000–24,000 BTU models, with 40–50 ft of vertical separation. Newer R-454B GX-Series units are rated for about 65 ft. The factory charge covers roughly the first 25–33 ft; beyond that an HVAC pro adds refrigerant. Confirm your unit's maximum in its manual.
Can I reuse my existing line set with a Mitsubishi mini-split?
Often yes — if the diameters match your new Mitsubishi unit, the run length is within its limits, and the copper is clean and leak-free. Re-flare the ends, pressure-test, and pull a fresh vacuum before opening the service valves. If the new unit uses a different refrigerant, such as an R-454B GX-Series, flush and verify any line set that previously carried R-410A. Always match a correctly sized line set and confirm against your unit's installation manual.
Line set sizes for other brands: Daikin · LG · Fujitsu · MRCOOL · Pioneer
This page provides general guidance on Mitsubishi mini-split line set sizing based on published Mitsubishi Electric specifications. Exact line diameters vary by series and model, and lengths, pre-charge distance, maximum line length, and refrigerant (R-410A or R-454B) differ by unit — always verify against your unit's official installation manual before purchasing or installing.
